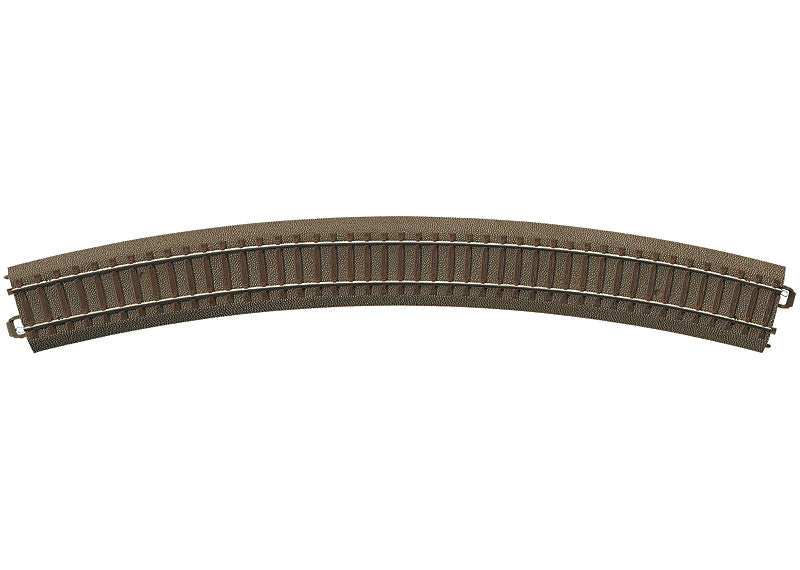

Trix Curved H0 Track Radius 643.6 mm / 25-5/16" / Curve 30°

• Prototypical appearance with ballast, ties, and metal rails
• Electrical operating reliability
• Fast setup and takedown with a sturdy click connection, even on carpets

Trix curved H0 track with a radius R5 of 643.6 mm / 25-5/16". Curve 30°. Parallel curve to Radius R4 with a spacing of 64.3 mm / 2-9/16". 12 sections of track form a circle with an outer diameter of 133 cm / 52-3/8". The plug-in connection with the "Click". Set up and take down in a jiffy. Sturdy and long lasting.

Trix C Track is the ideal track for fast setup of a track pattern on a table or on the floor. The low resistance click connection on the ends of the track has especially reliable contact and is especially conductive. The connections are designed to be mechanically very precise and display a high level of their own stability in track sections put together. The running and operating current for a model railroad can be fed to the layout everywhere. The feeder wires are connected to the track using spade connectors at the contact tongues present in each section of track. This results in flexibility for all kinds of model railroad track lines. A track system, which allows constantly new operating adventures on constantly new rail lines!

If you already have a "two-rail" layout, you can benefit from Trix C Track: Use this elegant roadbed track for any expansion. You use the adapter track (62951) for the transitions in the existing area. It allows connections between Trix C Track and conventional Code 83 track.

The low rail profile for Trix C Track is 2.07 mm high and thereby fulfills the standard for Code 83. All H0 locomotives and cars with wheel flanges designed for NEM will run here – and that is practically all new models offered in the last two decades for two-rail systems by various manufacturers! This track thereby contributes to the important compatibility of this area of H0.
