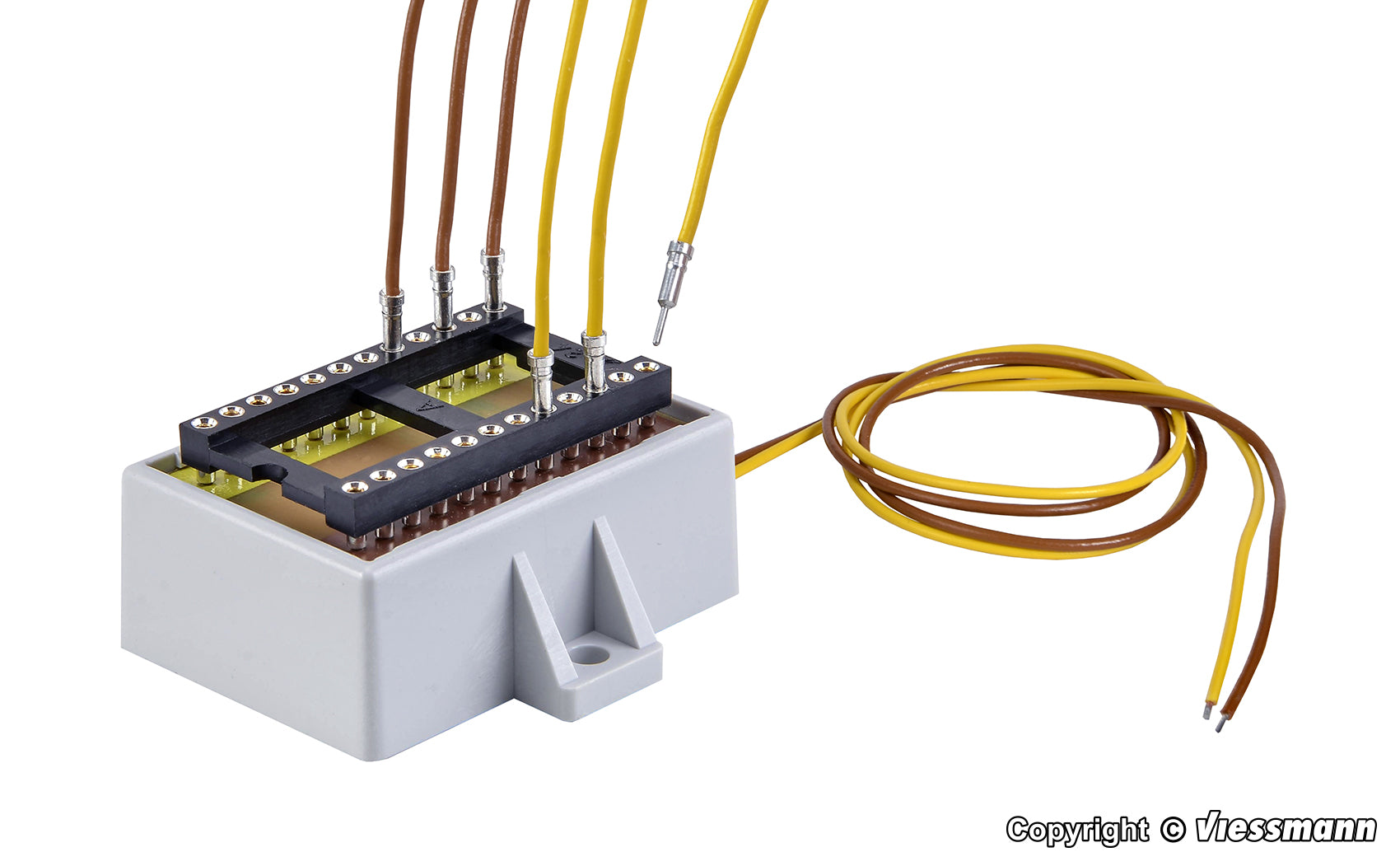

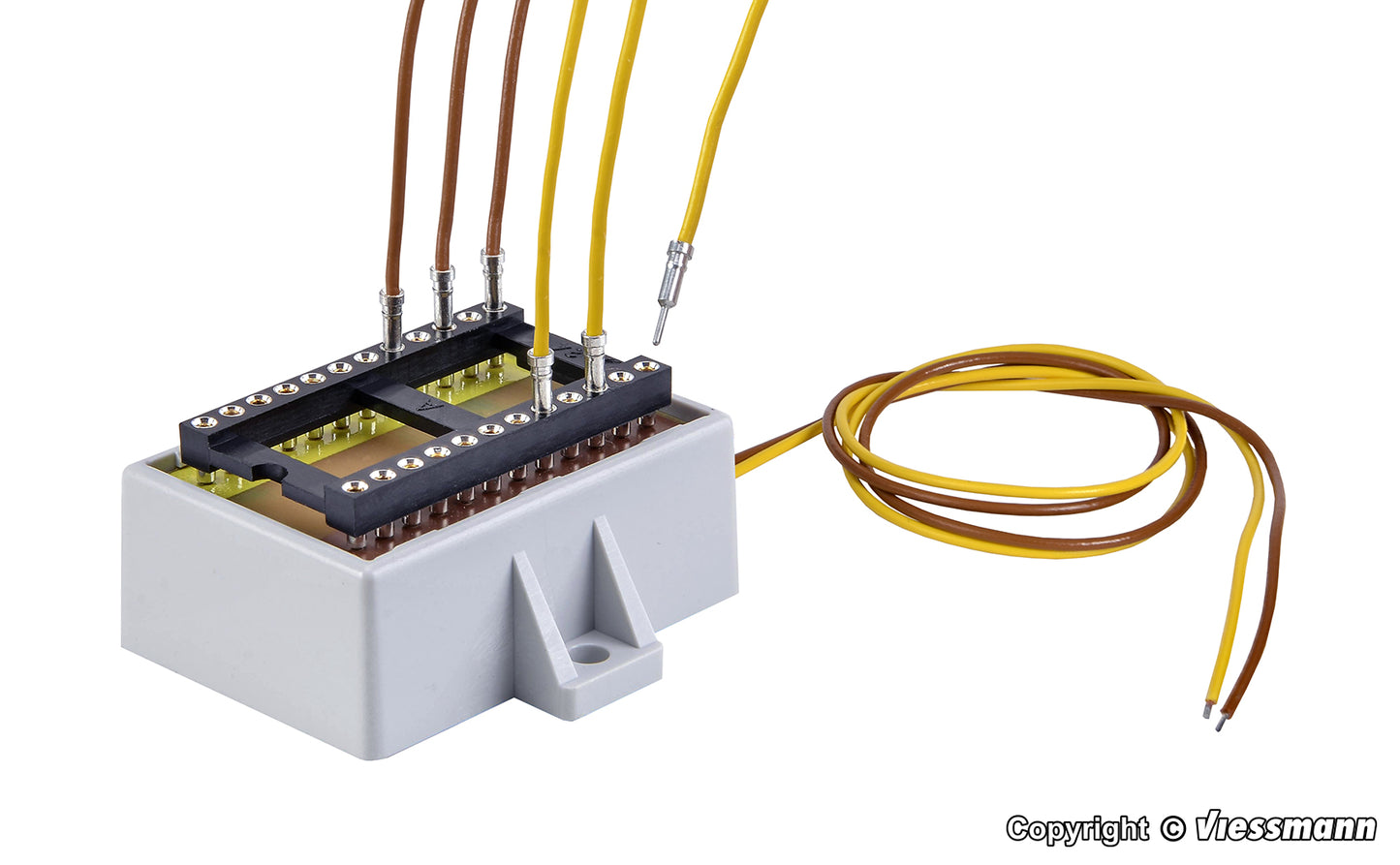

Power Module with Plug-in Rail

Item No: 5205

A compact module for easy connection and bright flicker-free LED lighting. The plug-in rail on the top allows a comfortable connection of 12 loads without soldering, just by plugging the leads of resistors and diodes into the sockets of the plug-in rail. Ideal for the interior lighting sets items 6045 – 6048. Cables for connection to a transformer are included. Input voltage 16 V AC, output voltage approx. 22 V DC, max. current 400 mA continuously, overcurrent protection. Plug-in rail is extendable, e. g. item 6049. Provides up to 25 LED lights. Dimensions (without mounting): L 3,7 x W 2,6 x H 2,2 cm.
