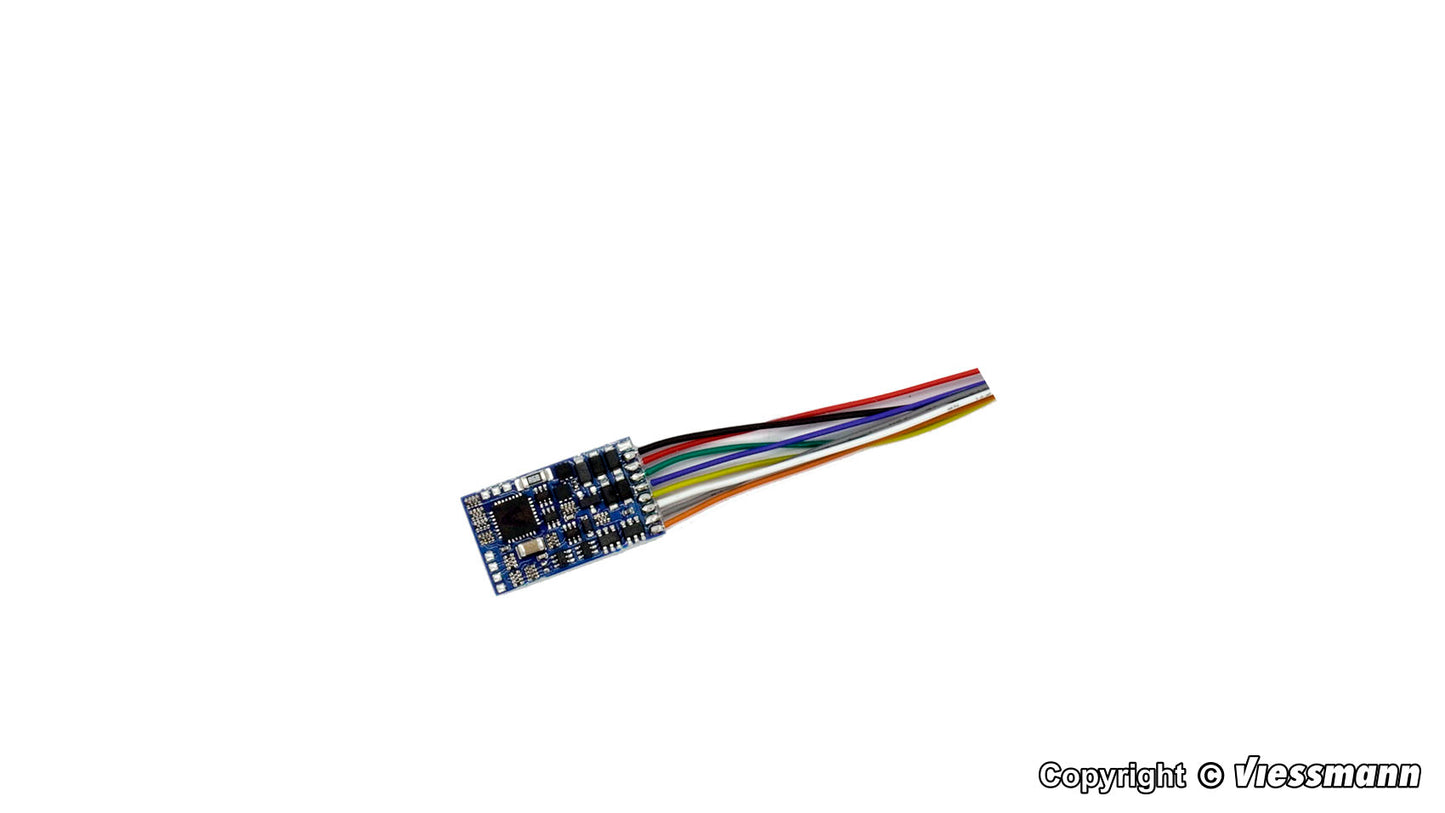

Locomotive Decoder with Cable

Item No: 5244

Miniature multi-protocol locomotive decoder suitable for RailCom, DC, DCC (2- and 4-digit addresses) and Märklin Motorola, with automatic protocol recognition. Adjustable minimum and maximum speeds as well as a freely programmable speed step table (28 steps), adjustable high frequency load regulation, also suitable for coreless motors, with 14, 28 and 128 speed steps and shunting mode. Drive current 1 A continuously, 1.8 A peak. 4 function outputs, with additional features: Function mapping, direction-dependent headlights, dimming, flashing. The max current of the function outputs is 500 mA. All outputs are protected against overloading, in addition the decoder is protected against overheating. The decoder has a SUSI interface, as well as a connection for external energy storage, as soldering pads.

Dimensions: L ca. 2,5 x W 1,54 x H 0,33 cm.
